Grubościówka grubiarka strugarka HOUFEK SP 430 / 530 / 630

ABA

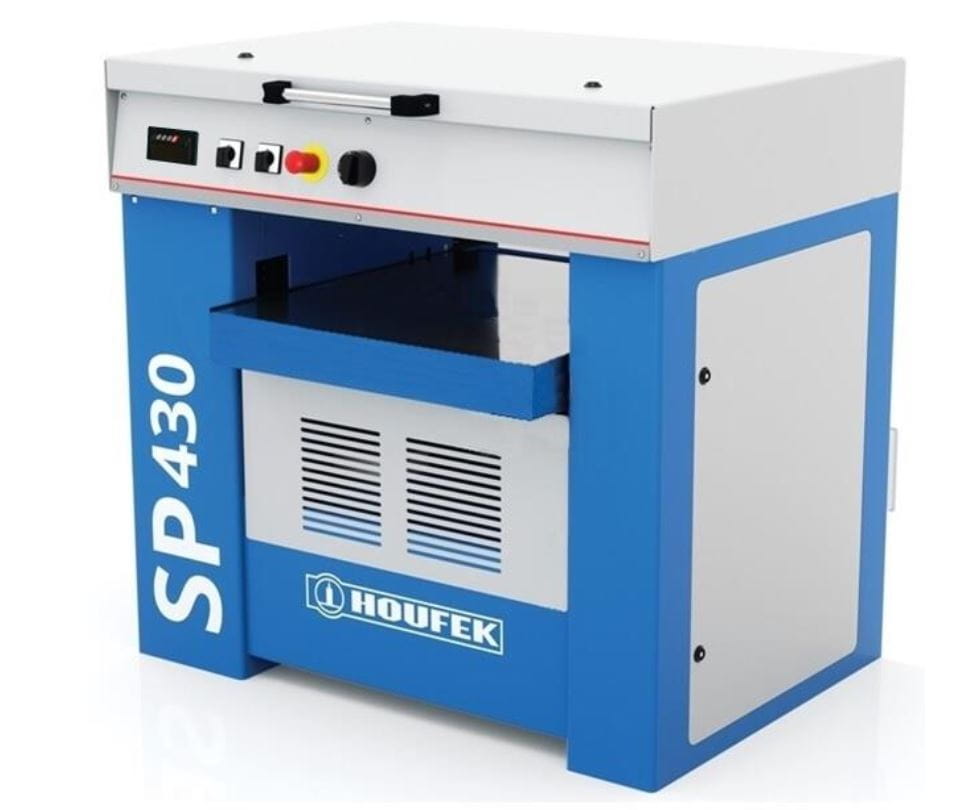

SP 430 thicknesser 5,5 kW (7,5 HP)

ABB

SP 530 thicknesser 5,5 kW (7,5 HP)

ABC

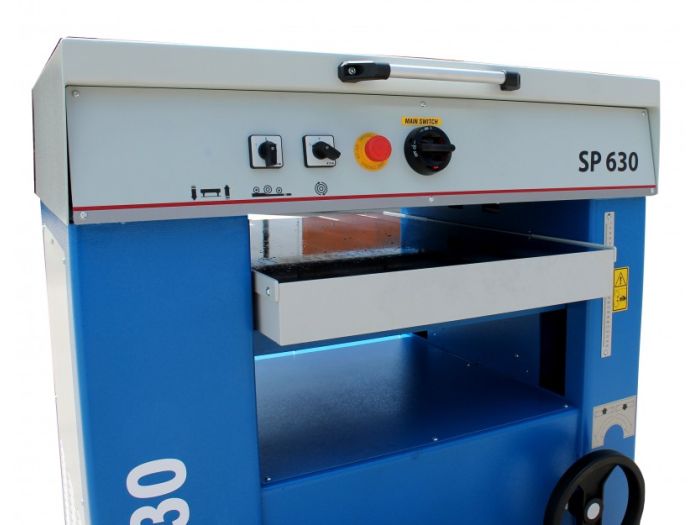

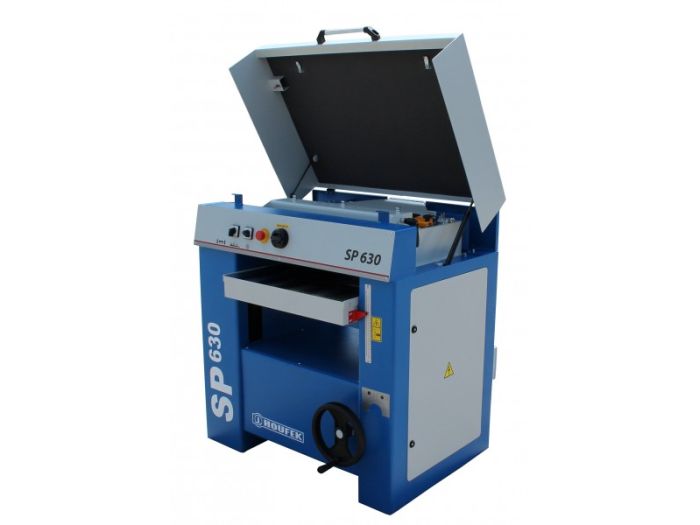

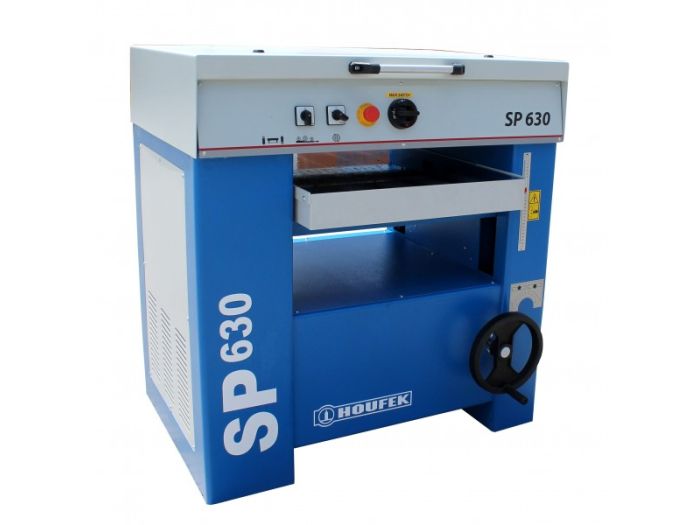

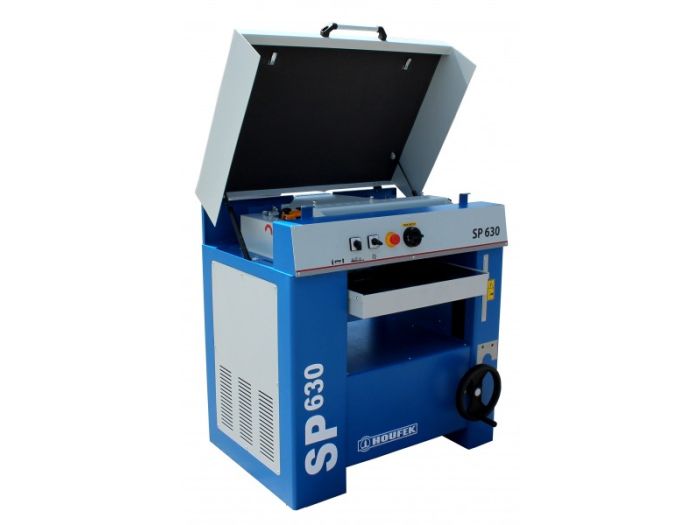

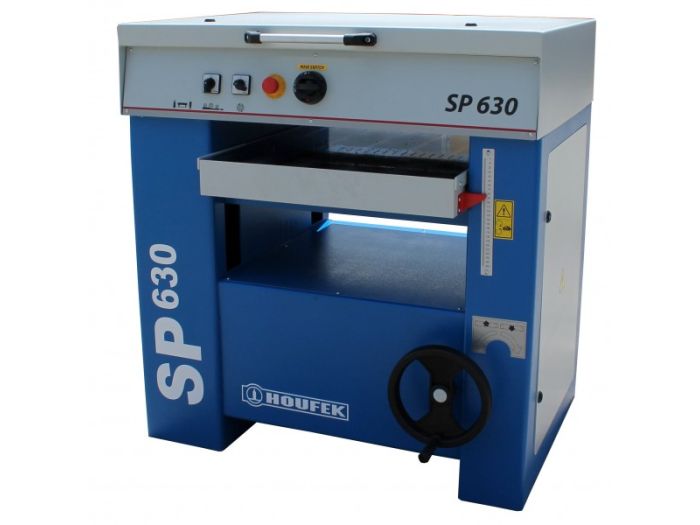

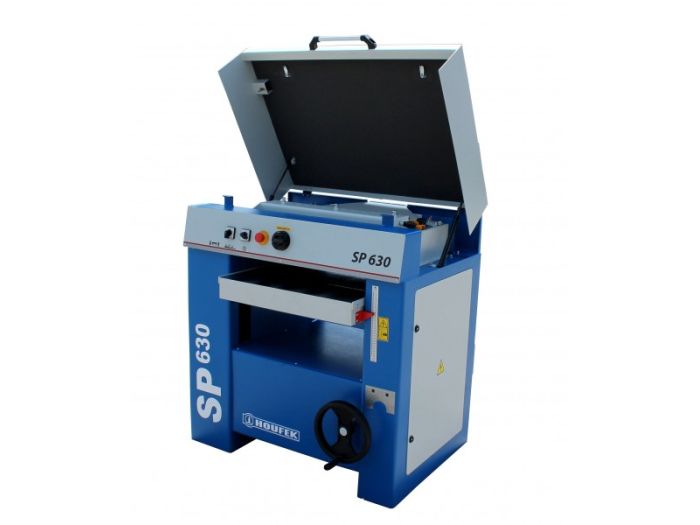

SP 630 thicknesser 5,5 kW (7,5 HP)

1.1

Motorized table height adjustment

1.2

Mechanical measuring of table position

1.3

Work table length 900 mm

1.4

Automatic star/delta switch

1.5

Electromagnetic brake

1.6

Cutter head Ø 120 mm, 4 knives

1.7

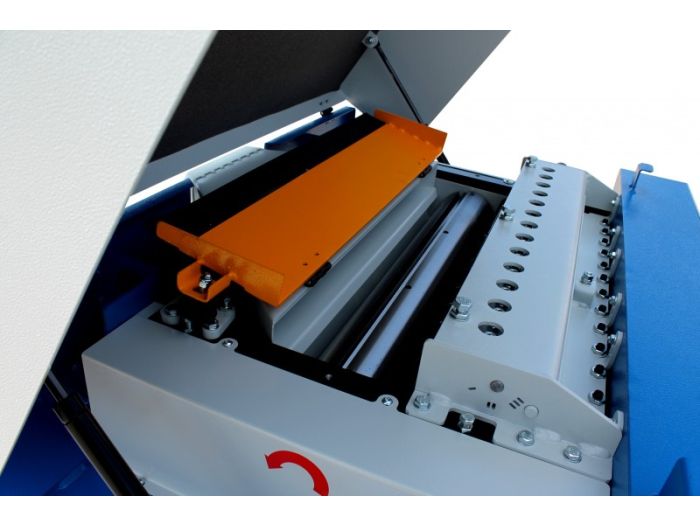

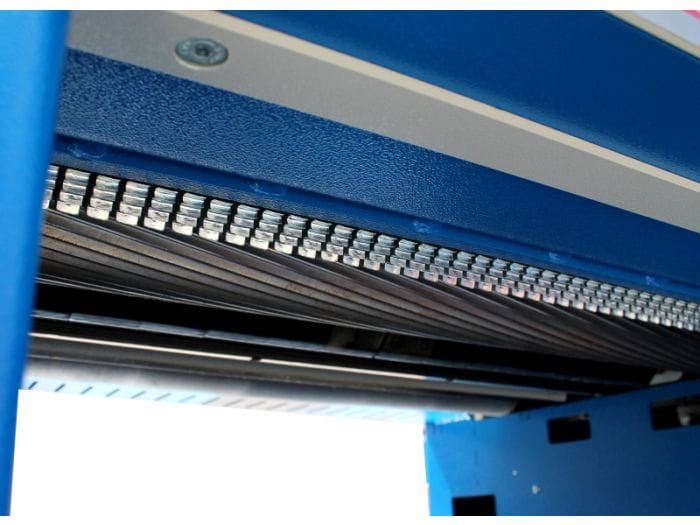

Infeed pressure segments

1.8

Serrated infeed roller

1.9

Work table support - 4 points

1.10

Min./max. working height 3 - 250 mm

1.11

Two feed speeds 4/8 m/min.

1.12

Exhaust outlet Ø 150 mm

1.13

Voltage 400V/50Hz

1.14

Packing PE foil

1.15

CE certification

2. Optional equipment

P91 02

Motor 7,5 kW (10 HP) for SP 630

P91 05

Serrated segmented infeed roller

P91 06

Two height adjustable table rollers

P91 08

Electronic measuring of table position with digital display

P91 50

Two-speed table lift 1/6mm/s - frequency converter

P91 10

Knife setting device with indicator

P91 76

Spiral cutterhead with insert knives for SP 430

P91 77

Spiral cutterhead with insert knives for SP 530

P91 78

Spiral cutterhead with insert knives for SP 630

P91 61

Set of insert knives 15x15x2,5 mm - 10 pcs

P91 162

Set of screws M6x11 TORX 25 (for P91 61) – 10 pcs

P91 11

Cutterhead for knives type "Tersa" for SP 430

P91 12

Cutterhead for knives type "Tersa" for SP 530

P91 13

Cutterhead for knives type "Tersa" for SP 630

P91 14

Extra set of knives HSS 18% W, 450x35x3 mm

P91 15

Extra set of knives HSS 18% W, 550x35x3 mm

P91 16

Extra set of knives HSS 18% W, 650x35x3 mm

P91 17

Extra set of knives type "Tersa" HR 13%Cr, 450 mm

P91 18

Extra set of knives type "Tersa" HR 13%Cr, 550 mm

P91 19

Extra set of knives type "Tersa" HR 13%Cr, 650 mm
