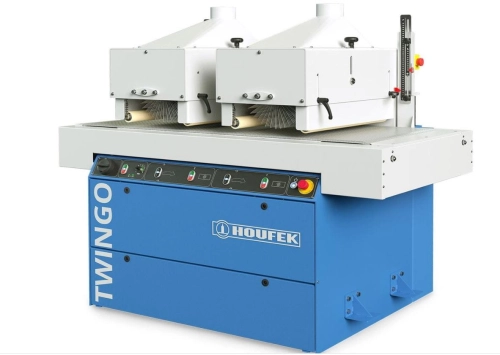

Szczotkarka, postarzarka HOUFEK TWINGO

B, BB, BBB, BBBB,
BBBBB, BBBBBB

Diameter of tool 120–300 mm, working length 400, 600 mm

s

Independent height adjustment of working units 0 - 300 mm

s

Fixed table h=900 mm

s

Shaft Ø 40 mm

s

Two height adjustable rubbered pressure rollers for one sanding unit

s

Motorized working unit height adjustment with height scale

s

Two feed belt speeds 4,5/9 m/min.

s

Brush safety covers

s

Diameter of extraction outlets of units B 120mm

s

Working tools not included

s

Voltage 400V/50Hz

s

Packing PE foil

s

CE certification

s

(s) - standard, (-) - not (not included)

Motors / frequency inverters

B, BB, BBB,
BBBB,
BBBBB,
BBBBBB

Motor 5,5 kW 7,5 HP

P81 01

▪

Motor 7,5 kW 10 HP (pro šíři 600)

P81 02

▪

Brushing motor frequency inverter 4 kW - one working unit (RPM 180-1000)

P81 211

▪

Brushing motor frequency inverter 5,5 kW - one working unit (RPM 180-1000)

P81 212

▪

Brushing motor frequency inverter 7,5 kW - one working unit (RPM 180-1000)

P81 213

▪

Frequency inverter for side brush motors (RPM 180-1000)

P81 12

▪

Frequency inverter for side brush motors (RPM 180-1000)

P81 13

▪

Feed belt motor frequency inverter - speed 3-15 m/min.

P81 10

▪

Forward/reverse shaft rotation (1 unit)

P81 31

▪

Working unit Q

B, BB, BBB,
BBBB,
BBBBB,
BBBBBB

Cross belt unit Q - sanding belt

P81 40

▪

▪ additional sanding unit to basic configuration - 1st position

▪ working position 90° (adjustable +/- 5°)

▪ electronic measuring of unit position with digital display ELGO IZ15

▪ pneumatic sanding pad

▪ diameter of extraction outlet 120mm

▪ sanding belt 70 x 1800 / 2200 mm, grain P16

Side brush unit

B, BB, BBB,
BBBB,
BBBBB,
BBBBBB

Side brush unit K1

P81 56

▪

▪ manual vertical and horizontal adjustment

▪ table with fence and component hold down 1 pc

▪ diameter of tool 150 - 300 mm

▪ working height 150 mm

 Side brushing units

B, BB, BBB,
BBBB,
BBBBB,
BBBBBB

Side brushing units K2

P81 57

▪

▪ manual vertical and horizontal adjustment

▪ minimal workpiece width 50 mm ( brush diameter 240-300mm - with
support roller)

▪ diameter of tool 2 x 150 - 300 mm

▪ working height 150 mm

B, BB, BBB,
BBBB,
BBBBB,
BBBBBB

Brushing unit oscillation with switch OFF possibility

P81 64

▪

Amperemeter for brushing motor

P81 14

▪

Electronic measuring of working unit position with digital display ELGO IZ15

P81 30

▪

Automatic feed belt tracking

P81 65

▪

Front extension table - 500 mm

P81 71

▪

Rear extension table - 500 mm

P81 72

▪

Vacuum table

P81 82

▪

Vacuum pump + silencer

P81 83

▪

Carriage with 4 wheels - brakable

P81 80

▪

Custom machine colour

P81 66

▪
