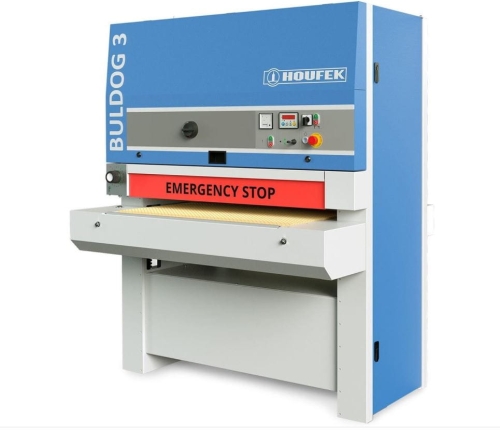

Szlifierka szerokotaśmowa HOUFEK Buldog 3

SIAB

SPB 650 C Buldog 3 Sander 5,5 kW (7,5 HP)

SIBB

SPB 950 C Buldog 3 Sander 7,5 kW (10 HP)

SICB

SPB 1100 C Buldog 3 Sander 11 kW (15 HP)

SIAD

SPB 650 RC 2M Buldog 3 Sander 2 x 5,5 kW (7,5 HP)

SIBD

SPB 950 RC 2M Buldog 3 Sander 2 x 7,5 kW (10 HP)

SICD

SPB 1100 RC 2M Buldog 3 Sander 2 x 11 kW (15 HP)

C

RC

1. working roller rubbered Ø 120 mm, 90Sh

s

s

2. working roller rubbered Ø 120 mm, 45Sh

–

s

Sanding belt 650 x 1900 mm, 950 x 1900 mm, 1120 x 1900 mm

s

s

Motorized table height adjustment - workpiece height 3-160 mm

s

s

Pneumatical lifting of 1.working roller (info non working position)

s

s

Pneumatical lifting 2.working roller

–

s

Hard pad - mechanically adjustable

s

s

Automatic star/delta switch

s

s

Amperemeter for motor of sanding unit

s

s

Optoelectronic sensor of sanding belt oscillation

s

s

Table pozicioner - workpiece height

s

s

Electronic measuring of table position with digital display

s

s

Two feed belt speeds 4,5/9 m/min

s

s

Rubbered pressure rollers

s

s

Emergency - Main motor electromagnetic disc brake

s

s

Sanding belt

s

s

Noise protection

s

s

Voltage 400V/50Hz

s

s

Packing PE foil

s

s

CE certification

s

s

 Motors / frequency inverters

C

RC

Motor 7,5 kW (10HP) - only for width 650 mm

P33 01

▪

▪

Motor 11 kW (15 HP) - only for width 950 mm

P33 02

▪

▪

Motor 15 kW (20 HP) - only for width 950, 1100 mm

P33 03

▪

▪

Feed belt motor frequency inverter - speed 3 - 15 m/min

P33 10

▪

▪

Sanding belt motor 5,5 kW frequency inverter - speed 3-18 m/s

P33 212

▪

▪

Sanding belt motor 7,5 kW frequency inverter - speed 3-18 m/s

P33 213

▪

▪

Sanding belt motor 11 kW frequency inverter - speed 3-18 m/s

P33 214

▪

▪

Sanding belt motor 15 kW frequency inverter - speed 3-18 m/s

P33 215

▪

▪

 Working rollers

C

RC

Grooved steel roller Ø 120 mm

P33 24

▪

▪

Rubbered roller Ø 120 mm, 30 Sh

P33 20

▪

▪

Rubbered roller Ø 120 mm, 45 Sh

P33 21

▪

▪

Rubbered roller Ø 120 mm, 60 Sh

P33 22

▪

▪

Rubbered roller Ø 120 mm, 90 Sh

P33 23

▪

▪

Sanding pads

 C

 RC

Pneumatic pad PL 1

P33 52

▪

▪

▪ timed ascent and descent

▪ pressure control 0,5-2,5 Bar. - manual

▪ sanding pad BP8S - veneer

Cleaning units

C

RC

Timed air cleaning device for sanding belt with moving jets - 1 pc

P33 61

▪

▪

▪ switching when workpiece passes

Timed air cleaning device for sanding belt - 1 pc

P33 60

▪

▪

▪ switching when workpiece passes

Others

C

RC

Automatic feed belt tracking

P33 65

▪

▪

Pressure switch 3,5 - 4,0 bar

P33 66

▪

▪

Front extension table 300 mm - pull-out

P33 71

▪

▪

Rear extension table 300 mm - fixed

P33 72

▪

▪

Mechanical limitation of maximum material removal

P33 70

▪

▪

Custom machine colour

P33 73

▪

▪

Pneumatic blast gate Ø 150 mm- 1 pc

P33 115

▪

▪
