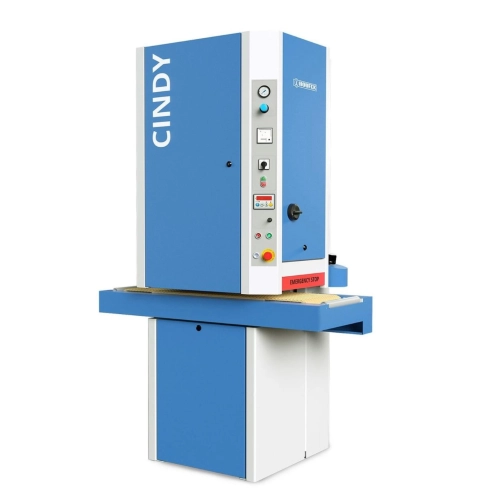

Szlifierka szerokotaśmowa HOUFEK Cindy

SCAB

SPB 300 C Cindy Sander 5,5 kW (7,5 HP)

SCBB

SPB 400 C Cindy Sander 5,5 kW (7,5 HP)

SCAD

SPB 300 RC 2M Cindy Sander 2 x 5,5 kW (7,5 HP)

SCBD

SPB 400 RC 2M Cindy Sander 2 x 5,5 kW (7,5 HP)

C

RC

1. working roller rubbered Ø 160 mm, 90Sh

s

s

2. working roller rubbered Ø 160 mm, 45Sh

–

s

Sanding belt 330 x 1900 mm, 430 x 1900 mm

s

s

Motorized table height adjustment - workpiece height 3-160 mm

s

s

Mechanical lifting 1.working roller

s

s

Mechanical lifting 2.working roller

–

s

Hard pad - mechanically adjustable

s

s

Automatic star/delta switch

s

s

Amperemeter for motor of sanding unit

s

s

Optoelectronic sensor of sanding belt oscillation

s

s

Sanding unit pozicioner - workpiece height

s

s

Electronic measuring of table position with digital display

s

s

Two feed belt speeds 4,5/9 m/min

s

s

Rubbered pressure rollers

s

s

Emergency - Main motor electromagnetic disc brake

s

s

Straight and inclined sanding pad

s

s

Sanding belt

s

s

Noise protection

s

s

Voltage 400V/50Hz

s

s

Packing PE foil

s

s

CE certification

s

s

(s) - standard, (-) - not (not included)

C

RC

Motor 7,5 kW (10 HP)

P32 01

▪

▪

Sanding belt motor 5,5 kW frequency inverter - speed 3-18 m/s

P32 212

▪

▪

Sanding belt motor 7,5 kW frequency inverter - speed 3-18 m/s

P32 213

▪

▪

Feed belt motor frequency inverter - speed 3 - 15 m/min

P32 10

▪

▪

Two speed motor for unit height adjustment

P32 08

▪

▪

C

RC

Grooved steel roller Ø 160 mm

P32 24

▪

▪

Rubbered roller Ø 160 mm, 30 Sh

P32 20

▪

▪

Rubbered roller Ø 160 mm, 45 Sh

P32 21

▪

▪

Rubbered roller Ø 160 mm, 60 Sh

P32 22

▪

▪

Rubbered roller Ø 160 mm, 90 Sh

P32 23

▪

▪

C

RC

Pneumatic pad PL 1

P32 51

▪

▪

▪ timed ascent and descent

▪ pressure control 0,5-2,5 Bar. - manual

▪ sanding pad BP8S - veneer

C

RC

Module for workpiece cleaning by rotating brush Ø 100 mm

P32 210

▪

▪

▪ motor power 1,5 kW( 2 HP)

▪ working tool D = 100 mm

▪ cleaning roller - nylon

▪ at the output of machine

▪ suction outlet D = 150 mm

▪ pressure rollers

Timed air cleaning device for sanding belt with moving jets - 1 pc

P32 61

▪

▪

▪ switching when workpiece passes

Timed air cleaning device for sanding belt - 1 pc

P32 60

▪

▪

▪ switching when workpiece passes

C

RC

Automatic feed belt tracking

P32 65

▪

▪

Automatic unit pozicioner - workpiece height

P32 67

▪

▪

Pressure switch 3,5-4,0 bar

P32 62

▪

▪

Support for workpiece sliding - length 1,2 m

P32 70

▪

▪

Support for workpiece sliding - length 5,2 m

P32 71

▪

▪

Vacuum table

P32 82

▪

▪

Vacuum pump + silencer

P32 83

▪

▪

Pressure bars for sanding short workpieces - 1 pair

P32 68

▪

▪

Mechanical limitation of maximum material removal

P32 69

▪

▪

Custom machine colour

P32 85

▪

▪

Pneumatic blast gate Ø 150 mm- 1 pc

P32 115

▪

▪
