Wyrówniarko grubościówka HOUFEK SC 430 / 530

ADB

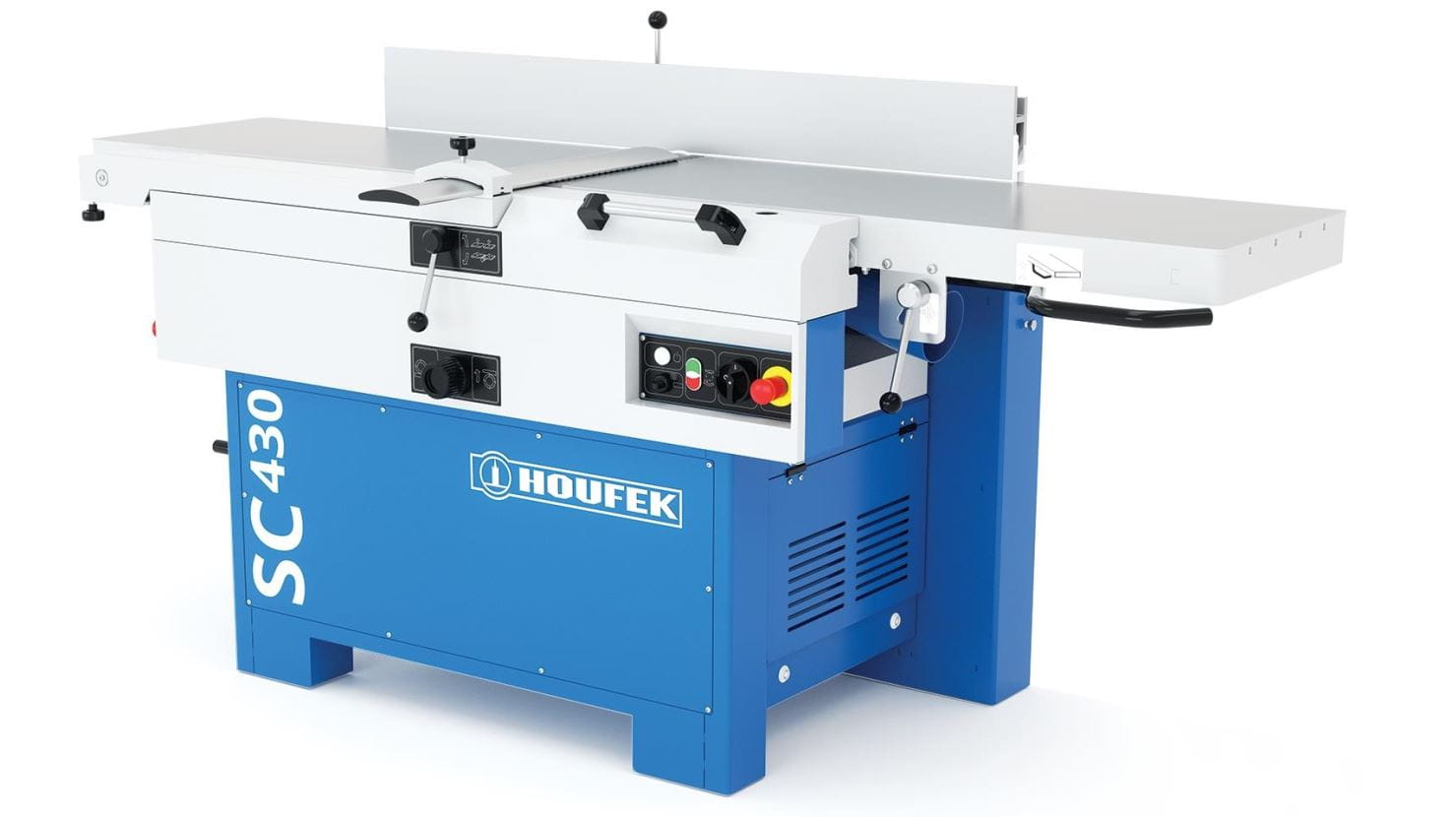

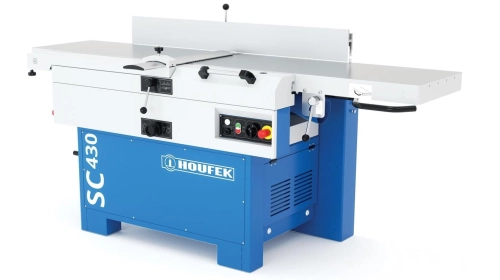

SC 430 Combination planer/thicknesser 5,5 kW (7,5 HP)

ADC

SC 530 Combination planer/thicknesser 5,5 kW (7,5 HP)

1.1

Total length of work tables of surface planer SC 430 - 2150 mm

1.2

Total length of work tables of surface planer SC 530 - 2350 mm

1.3

Simultaneously tilting planer tables

1.4

Size of fence 1300x150 mm

1.5

Tiltable planer fence 0°- 45°

1.6

Length of thicknessing work table - 1000 mm

1.7

Manual thicknessing table height adjustment

1.8

Mechanical measuring of the thickness table position

1.9

Thicknessing table support - 4 points

1.10

Infeed pressure segments

1.11

Serrated infeed roller

1.12

Outfeed roller

1.13

Min - max. working height 3 - 250 mm

1.14

Cutter head Ø 120 mm, 4 knives

1.15

Automatic star/delta switch

1.16

Two feed speeds 6/12 m/min.

1.17

Electromagnetic brake

1.18

Voltage 400V/50Hz

1.19

Packing PE foil

1.20

CE certification

Optional equipment

P93 03

Motor 7,5 kW (10 HP) for SC 530

P93 05

Serrated segmented infeed roller

P93 13

Foldable cutterhead guard

P93 14

Auxiliary fence for processing narrow workpieces

P93 47

Motorized thicknessing table height adjustment with two speed

P93 17

Two height adjustable rollers in thicknessing table

P93 19

Electronic measuring of table position with digital display - thicknesser

P93 72

Spiral cutterhead with insert knives for SC 430

P93 73

Spiral cutterhead with insert knives for SC 530

P93 61

Set of insert knives 15x15x2,5 mm - 10 pcs

P93 162

Set of 10 pcs screws M6x11 TORX 25 (for P93-61)

P93 21

Cutterhead for knives type "Tersa" for SC 430

P93 22

Cutterhead for knives type "Tersa" for SC 530

P93 23

Knife setting device with indicator

P93 25

Extra set of knives HSS 18% W, 450x35x3 mm

P93 26

Extra set of knives HSS 18% W, 550x35x3 mm

P93 28

Extra set of knives type "Tersa" HR 13% Cr, 450 mm

P93 29

Extra set of knives type "Tersa" HR 13% Cr, 550 mm
